KT200 programmer KTM200 ECU programmer for CAR TRUCK MOTORBIKE TRACTOR BOAT

1. ECUtuner KT200 Auto Version :

Car OBD, Truck OBD,  Full System , BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear.

 ECUtuner KT200 full Version :

Car OBD, Truck OBD, Tractor OBD , Boat OBD, Motorbike OBD , Full System , BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear.

2. Function of the device

Read and write ECU data, and the data can be used for ECU services.

3.What is ECU service?

ECU service includes 2 major items:

• Chip tuning.

Chip tuning is to improve engine performance by modifying the data read out by the equipment. The data is divided into: Stage 1 data,  Stage 2 data, and  Stage 3 data.

• ECU maintenance.

ECU maintenance data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device. We provide the following items:DTC code Removal

EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start

Vmax , and so on.

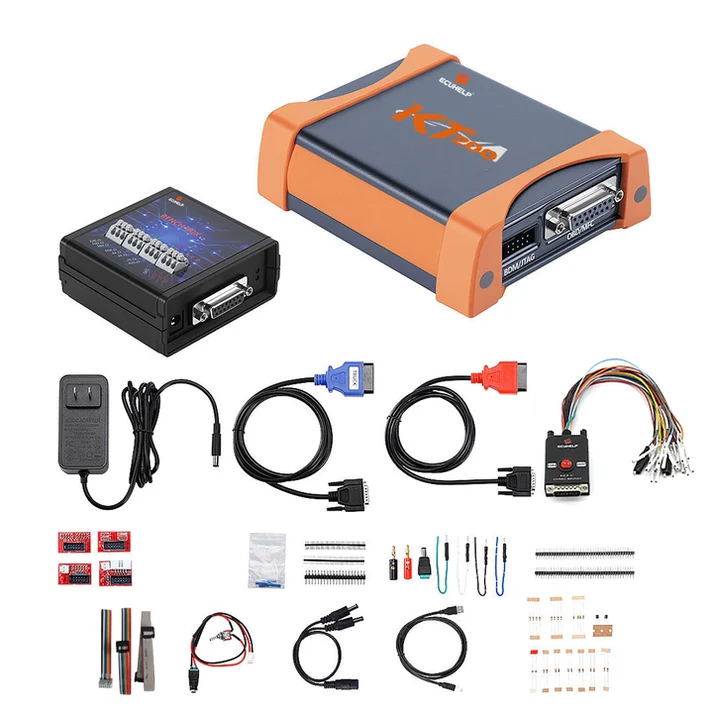

4.Hardware product list:

ECUtuner main unit x 1,

BENCH BOX x1,

OBD wires x 2,

pinout line x 1,

BOM adapter x4 ,

Transfer cables x 3,

Power wire x 4,

Set of resistors x1,

Adapter plugs x 4 sets,

Power adapters x 5 sets

5. Software: The product software includes 10 licenses:

Car OBD, Truck OBD, Tractor OBD ,Boat OBD, Motorbike OBD ,Full System , BDM/JTAG ,TOOL BOOT,Bench Mode,TCU Gear,

Professional software for reading and programming the control units of:

CAR

TRUCK MOTORBIKE

TRACTOR

BOAT

Additional TCU package available for Automatic Transmissions.

FULL READ AND WRITE VIA PIN OUT IN BENCH MODE:

BOSCH EDC7

BOSCH EDC16

BOSCH ME9/MED9

FULLREADANDWRITEVIAPINOUTINBENCHMODE:

BOSCH MD1

BOSCH MG1

-FREESCALESPC5777

-AURIXTC29x

-STSPC58

FULLREADANDWRITEVIAPINOUTINBENCHMODE:

BOSCH EDC17

BOSCH MED17/ME17

SIEMEN SPCR2.1

(Unlockingalsopossibleviapinout)

FULL SYSTEM VIA PIN OUT (MICRO/FLASH+EEPROM)OF ECUs:

BOSCH

CONTINENTAL

DELCO

DENSO

MARELLI

SIEMENS

TEMIC

TEMIC

BDM EJTAGMODESFOR:

BDM MPC55x

BDM MPC56x

BDM MC32/ZC32

BDM HC12/S12x

JTAG NEXUS MPC/SPC56xx

JTAG NEXUS MPC55xx

JTAG RENESAS

SH7055

SH7058

SH7059

SH7251

SH72543

SH72544

JTAG NEC76F00xx

76F0038AGD

76F0038GD

76F0039AGD

76F0039GD

76F0040GD

76F0070

76F0070

76F0085

BOOT MODES:

-BOOT MODEC16729Fxxx

-BOOT MODE ST K-LINE/RX-TX/CAN

ST10F168

ST10F269

ST10F273

ST10F275

ST10F276

ST10F276

ST10F280

ST10F296

 -BOOT MODE Tricore for micro

TC1724

TC1728

TC1738

TC1738

TC1762

TC1766

TC1767

TC1782

TC1791

TC1792

TC1793

TC1793

TC1796

TC1797

-BOOT MODE Renesas

SH7052

SH7054

SH7055

SH7055

SH7058

SH7059

SH7251

SH72543

SH72544

-BOOT MODE Mitsubishi

MH7202

MH7203

MH8102F

MH8105F

MH8106F

MH8202

MH8206F

MH8301F

MH8301F

MH8304F

MH8405F

-BOOT BAM SYSTEM MOTOROLA

SPC5674

SPC5777

-BOOT MODE Fujitsu

-BOOT MODE Hitachi

ADDITIONALPACKAGEFORAUTOMATICTRANSMISSION

FULLREADANDWRITETCU(MICRO+EEPROM)

TCU CLONING

TCU CODING FUNCTIONS
